Products Description
Modular Wall Washer LED Downlight
The Modular Wall Washer LED Downlight is a configurable recessed LED spotlight platform for commercial, hospitality, retail, gallery and architectural lighting projects. Its adjustable body, interchangeable optical modules and multiple trim options help project teams specify wall-washing or accent-lighting effects without creating disconnected product families.
One modular platform for multiple project requirements

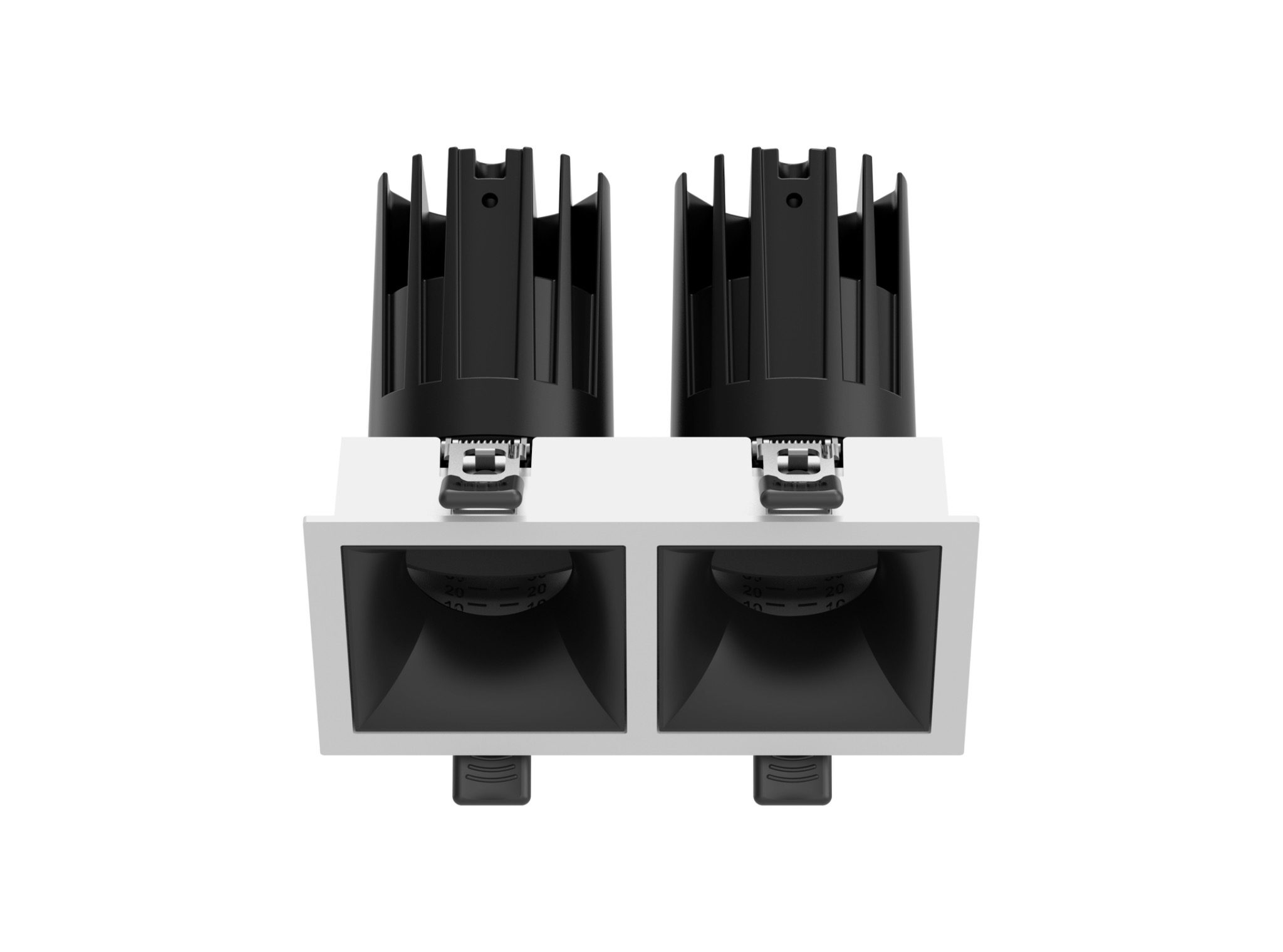

The series supports round and square versions, trim, flush and trimless installation styles, plus single-head and double-head configurations. This modular approach helps lighting brands and distributors cover a broader project range while reducing SKU complexity.
Key advantages
- Ultra-low glare: catalogue performance specifies UGR <16 at the maximum aiming angle and UGR <8 at the minimum angle. Actual UGR depends on model, wattage, beam angle and installation condition.

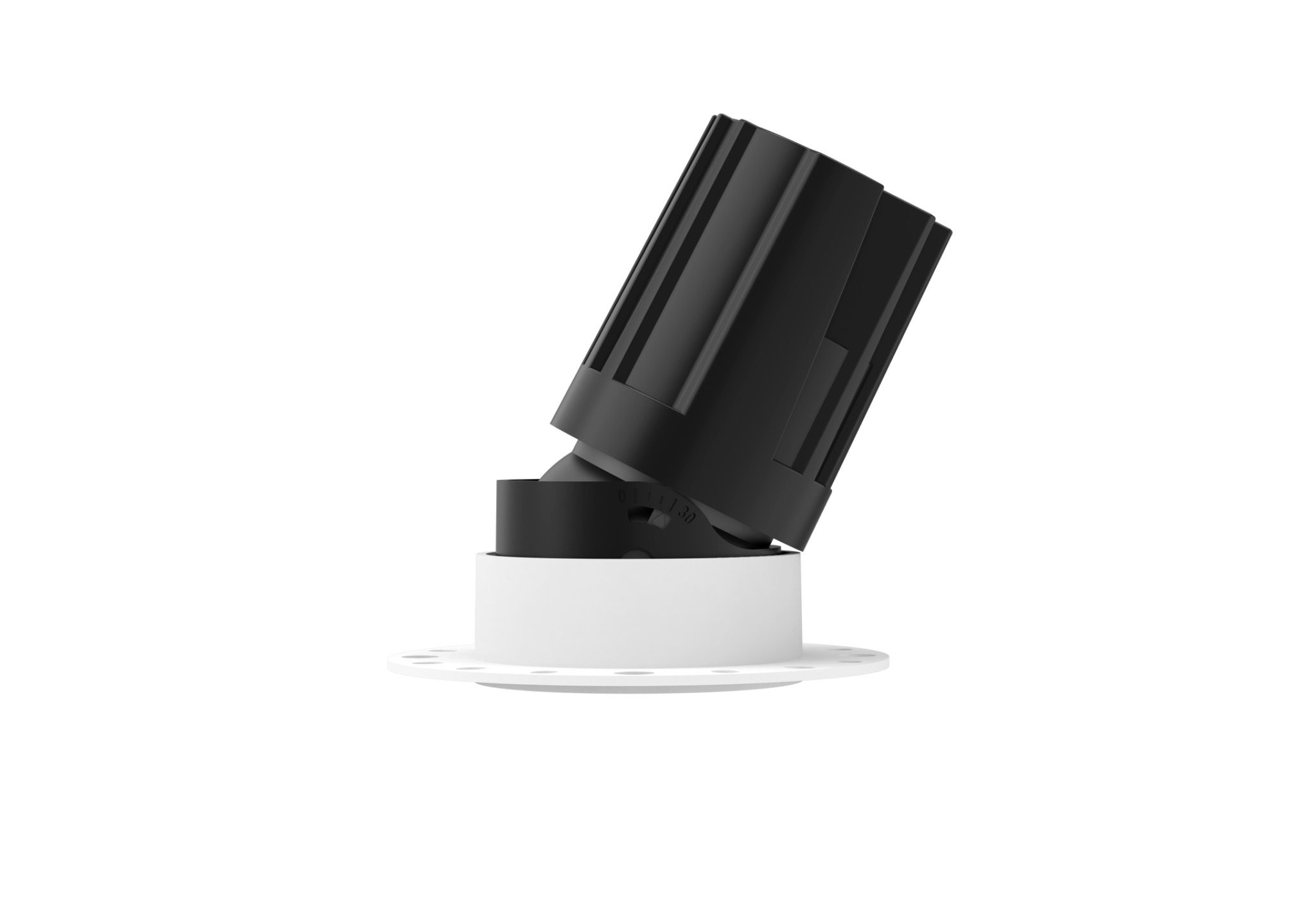

- 350° rotation and adjustable aiming: fine-tune beam direction, wall-washing distance and visual emphasis after installation.
- Tool-free service access: the integrated service ring supports module access, aiming adjustment and easier maintenance without removing the whole luminaire.
- Controlled wall washing: an anti-light-leakage structure helps reduce stray light from the joint area for a cleaner ceiling appearance.
- Flexible optics: 15°, 24°, 36° and 50° beam angles, with lens, reflector, filter and honeycomb options.
- Flexible light quality: 2700K, 3000K, 3500K, 4000K and 5000K CCT options; CRI90, CRI95 and CRI98 Full Spectrum available for selected configurations.
- Broad control compatibility: ON/OFF, TRIAC, 0/1–10V, DALI, Casambi, ZigBee, RF and DMX options subject to driver configuration.
- Project and OEM/ODM support: finish customization, optical selection, driver and control configuration, samples and technical documentation.
Technical specifications
| Product type | Modular recessed wall washer LED downlight / adjustable LED spotlight |
| Material | ADC12 die-cast aluminum |
| Beam angles | 15° / 24° / 36° / 50° |
| CCT | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | CRI90 / CRI95 / CRI98 Full Spectrum |
| Dimming | ON/OFF, TRIAC, 0/1–10V, DALI, Casambi, ZigBee, RF and DMX |

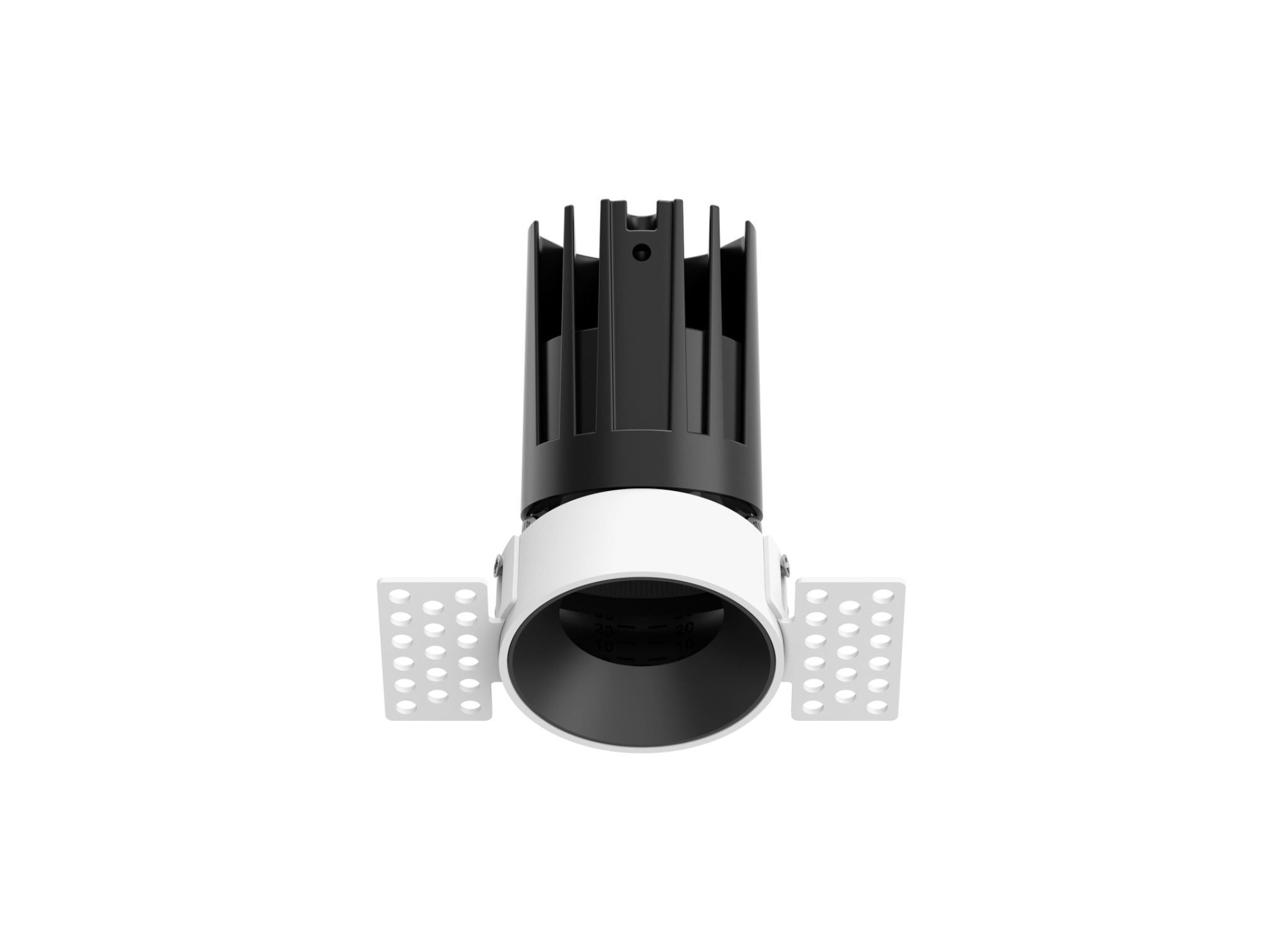

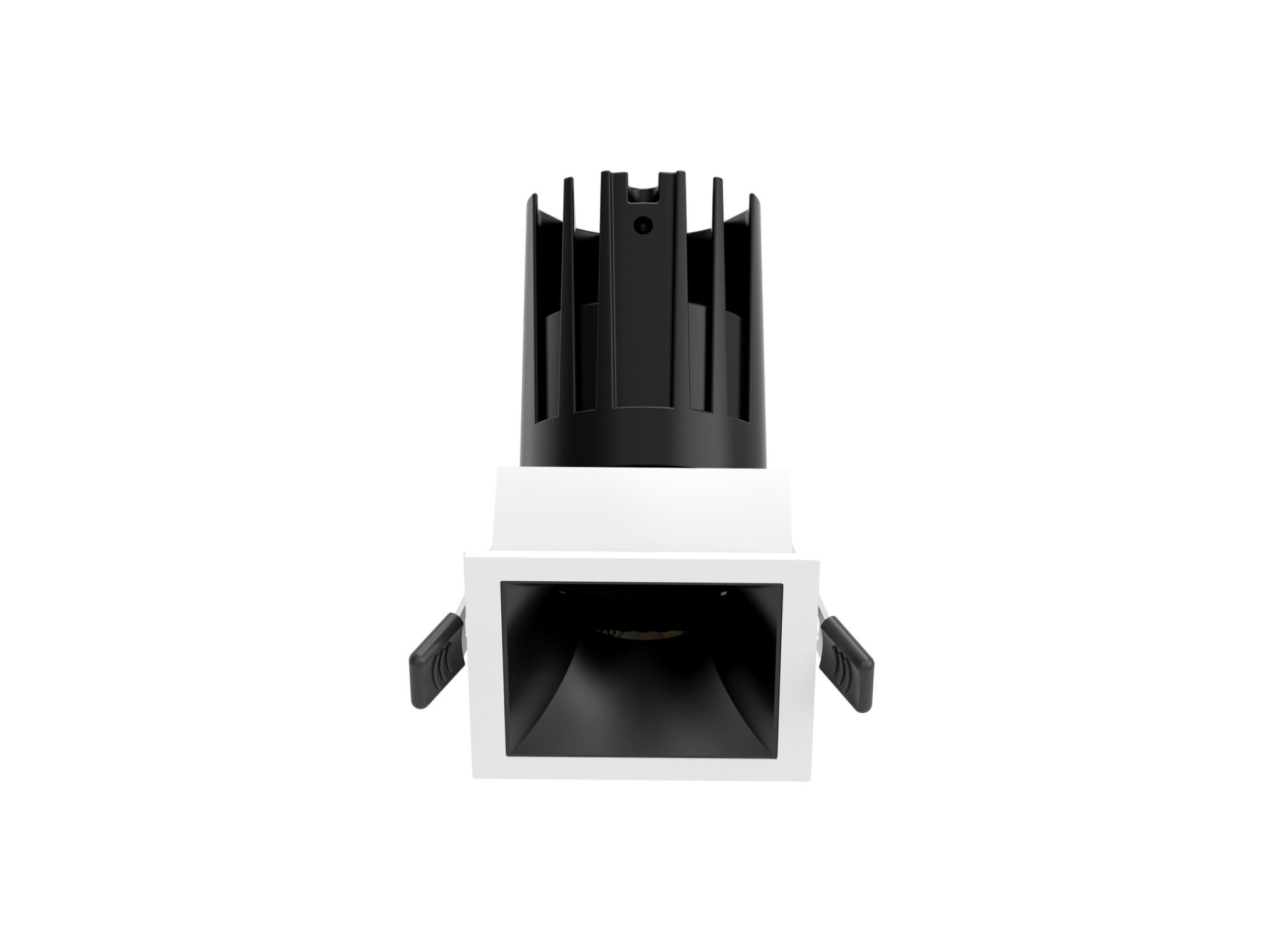

| Installation | Round trim, round flush, round trimless, square trim and square trimless versions |
| Adjustment | 350° rotation and adjustable aiming |
| IP options | IP20 and selected IP65 options; confirm suitability for the installation environment |
| Warranty | 5 years according to applicable supply terms |
Typical applications
Suitable for wall washing and accent lighting in art galleries, hotel corridors, retail stores, premium hospitality spaces, restaurants, villas, offices and other commercial interiors where visual comfort, aiming flexibility and clean ceiling integration matter.
Request project support
Request samples, datasheets, IES/LDT files or a project-based configuration proposal. Contact TP to discuss beam angle, trim style, reflector finish, CCT, CRI, dimming, IP rating and OEM/ODM requirements.
Product video
Watch the Modular Wall Washer LED Downlight in operation.
